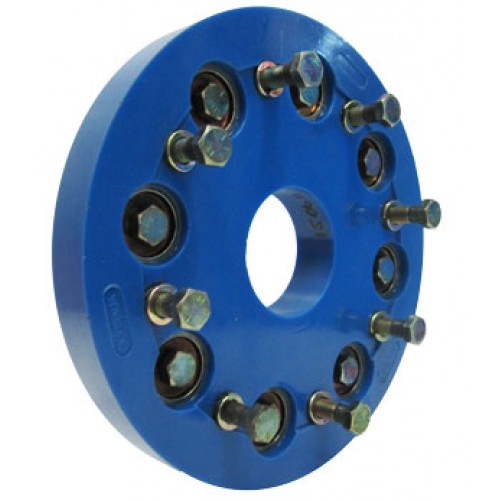

1600 Flexible Disc Coupling

Enquire about this product
Flange Bolt Circle Diameter PCD (F)6 1/8" (155.57mm)
Flange Bolt Size(8) 3/8" UNF (45deg)
Flange Index Ring Spigot (E)6 5/8" (168.27)
Flange Index Ring TypeA
Poly Flex Coupling OD (G)8 1/2" (215.90mm)
Poly Flex Coupling ID2 23/64" (59.99mm)
Poly Flex Coupling Thickness (A)1" (25.40mm)
Flange OD (C)6 7/8" (174.62mm)
Light Duty Rating (Nm)N/A
Medium Duty Rating (Nm)1536
Heavy Duty Rating (Nm)2152
Super Heavy Duty Rating (Nm)N/A
Weight (kg)1.8
Data Sheet
Categories: ,
1600-Coupling
Polymer Code80D95A90A80A
Hardness – Shore80959083
Tensile Strength – psi7550650048004500
RatingSuper Heavy DutyHeavy DutyMedium DutyLight Duty
1600-Coupling
