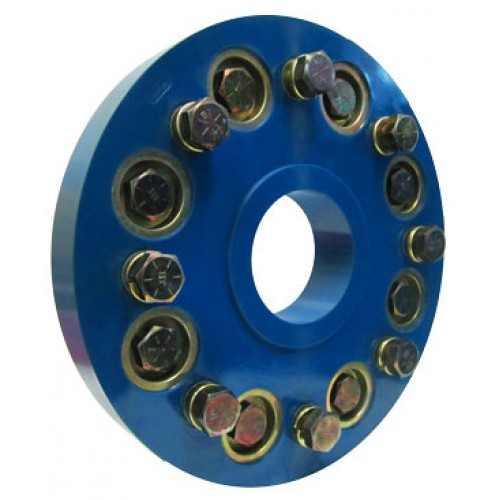

3408 Flexible Disc Coupling

Enquire about this product
Flange Bolt Circle Diameter PCD (F)340mm
Flange Bolt Size1" UNF
Flange Index Ring Spigot (E)180mm
Flange Index Ring TypeB
Poly Flex Coupling OD (G)460mm
Poly Flex Coupling ID130mm
Poly Flex Coupling Thickness (A)60mm
Flange OD (C)415mm
Light Duty Rating (Nm)N/A
Medium Duty Rating (Nm)N/A
Heavy Duty Rating (Nm)30000
Super Heavy Duty Rating (Nm)N/A
Weight (kg)29.5
Data Sheet
Categories: ,
3408-Coupling3408-Coupling
Polymer Code80D95A90A80A
Hardness – Shore80959083
Tensile Strength – psi7550650048004500
RatingSuper Heavy DutyHeavy DutyMedium DutyLight Duty

    Enquire about this product

    Vessel:

    LOA:

    Construction:

    Hull type:

    Engine(s)

    Number:

    Make & Model

    Rate HP:

    RPM:

    Weight:

    Gearbox(es)

    Number:

    Make & Model

    Reduction: :1

    Weight:

    Enginer/Gearbox Configuration

    If other please specific:

    Vessel Use:

    A:

    B:

    E:

    F:

    G:

    Gearbox flange spigot:
