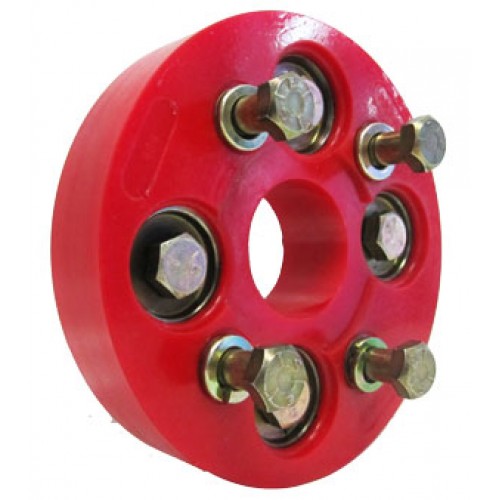

484 Flexible Disc Coupling

Enquire about this product
Flange Bolt Circle Diameter PCD (F)3 1/8" (79.37mm)
Flange Bolt Size(4) 3/8" UNF (Rect)
Flange Index Ring Spigot (E)2 3/8" (60.32mm)
Flange Index Ring TypeA
Poly Flex Coupling OD (G)5" (127mm)
Poly Flex Coupling ID1 1/2" (38.10mm)
Poly Flex Coupling Thickness (A)1" (25.4mm)
Flange OD (C)3 13/16" (96.83mm)
Light Duty Rating (Nm)171
Medium Duty Rating (Nm)309
Heavy Duty Rating (Nm)486
Super Heavy Duty Rating (Nm)N/A
Weight (kg)0.80
Data Sheet
Categories: ,
484-Coupling
Polymer Code80D95A90A80A
Hardness – Shore80959083
Tensile Strength – psi7550650048004500
RatingSuper Heavy DutyHeavy DutyMedium DutyLight Duty
484-Coupling
