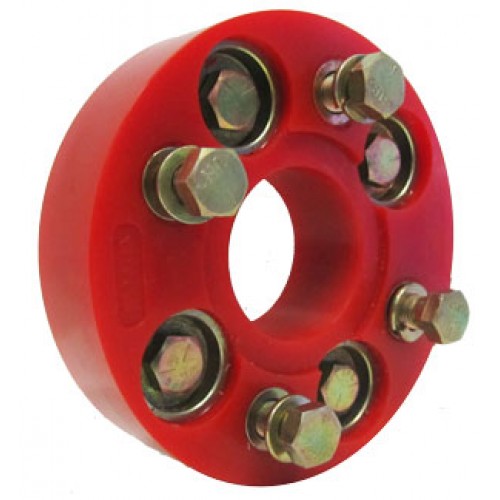

545 Flexible Disc Coupling

Enquire about this product
Flange Bolt Circle Diameter PCD (F)3 3/4" (95.25mm)
Flange Bolt Size(4) 7/16" UNF (Rect)
Flange Index Ring Spigot (E)2 3/4" (69.85mm)
Flange Index Ring TypeA
Poly Flex Coupling OD (G)5 9/32" (134.14mm)
Poly Flex Coupling ID2" (50.80mm)
Poly Flex Coupling Thickness (A)1 1/4" (31.75mm)
Flange OD (C)4 9/16" (115.88mm)
Light Duty Rating (Nm)260
Medium Duty Rating (Nm)335
Heavy Duty Rating (Nm)563
Super Heavy Duty Rating (Nm)N/A
Weight (kg)1.2
Data Sheet
Categories: ,
545-Coupling
Polymer Code80D95A90A80A
Hardness – Shore80959083
Tensile Strength – psi7550650048004500
RatingSuper Heavy DutyHeavy DutyMedium DutyLight Duty
545-Coupling

    Enquire about this product

    Vessel:

    LOA:

    Construction:

    Hull type:

    Engine(s)

    Number:

    Make & Model

    Rate HP:

    RPM:

    Weight:

    Gearbox(es)

    Number:

    Make & Model

    Reduction: :1

    Weight:

    Enginer/Gearbox Configuration

    If other please specific:

    Vessel Use:

    A:

    B:

    E:

    F:

    G:

    Gearbox flange spigot:
