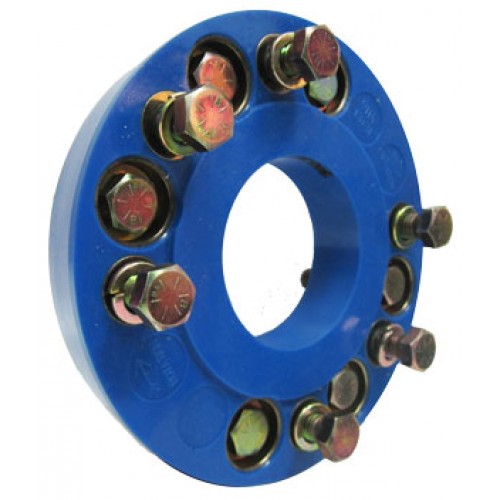

9114 IRM (3+3) Flexible Disc Coupling

Enquire about this product
Flange Bolt Circle Diameter PCD (F)7.5" (190.50mm)
Flange Bolt Size5/8" UNC
Flange Index Ring Spigot (E)6" (152.40mm)
Flange Index Ring TypeB
Poly Flex Coupling OD (G)241mm
Poly Flex Coupling ID3 7/8" (98.42mm)
Poly Flex Coupling Thickness (A)1 1/2" (38.10mm)
Flange OD (C)9" (228.60mm)
Light Duty Rating (Nm)N/A
Medium Duty Rating (Nm)3000
Heavy Duty Rating (Nm)4000
Super Heavy Duty Rating (Nm)N/A
Weight (kg)4.5
Data Sheet
Categories: ,
9114-33-Coupling9114-33-Coupling
Polymer Code80D95A90A80A
Hardness – Shore80959083
Tensile Strength – psi7550650048004500
RatingSuper Heavy DutyHeavy DutyMedium DutyLight Duty
